Ricoh Image

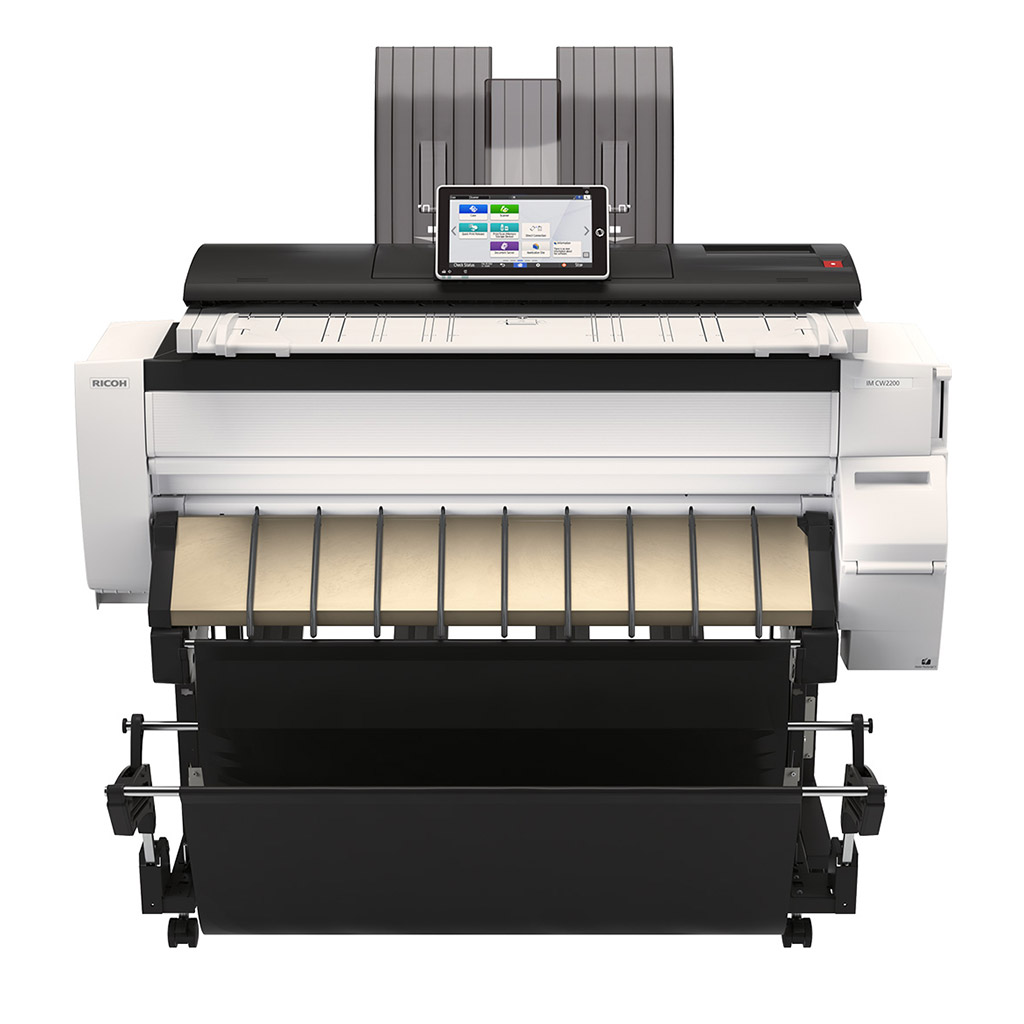

IM CW2200 Colour wide format multifunction printer

  • Print, copy, and scan
  • 3.8 cpm—A1 black and white
  • 10-sheet original stacker
  • 33 m max print length

Exceptional output

Produce impressive CAD drawings, from precise line drafts to boldly coloured 3D renders, with the highest accuracy and finest details.

Secure hub

More than just a printing and scanning solution, the IM CW2200 acts as a secure document hub for technical files to share jobs easily and help enhance productivity.

Quick and effortless

Faster scanning speeds as well as new features such as automatic paper roll setting, 10-sheet original stacker, and max 33 m print length make document production a breeze.

  1. Fast and convenient
    New automatic paper roll setting prints documents up to 33 m long and eliminates the need to manually feed the paper.
  2. Integrate seamlessly in mixed fleet environments
    Latest generation Smart Operation Panel offers an easy to navigate and intuitive interface, which is consistent with Ricoh's state-of-the-art A3 office devices, so no user training is required.
  3. Professional and durable prints
    Ricoh’s unique waterproof GEL-Jet™ technology with inks that are smudge-free and UV-resistant ensure the consistent production of high quality, durable prints.
  4. Fit in anywhere
    The small footprint makes the IM CW2200 flexible and ideal for a wide range of environments where space is an issue.

Download PDF brochure


Copy, print, scan
320 GB
Memory - standard
4 GB
Operation panel
10.1" Smart Operation Panel (G2.5)
Physical dimensions (WxDxH)—mainframe
1,384 x 675 x 1,220 mm
120 kg
Standard input capacity (sheets)

Roll feed
One roll each—297–914 mm wide x unlimited length, or max diameter 176 mm

1 sheet—914.4 x 2,000 mm

Standard output capacity (sheets)

10 sheets—original stacker (rear upper tray)
1 sheet—basket

Note: Basket output can't be stacked because the curvature factor is small.

Paper input configuration - standard
1-sheet bypass tray, 1-roll feeder
Paper output configuration - standard
10-sheet original stacker—rear upper tray, 1-sheet output basket
Supported media

Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper

Maximum paper size
914.4 mm x 33,000 mm
Media weight (g/m2)
Supply yields
Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge

Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge

Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.

Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio

Waste tank use conditions
23 degrees Celcius and 50% humidity
Interfaces - standard

1000 Base-T/100 Base-TX/10 Base -T (Ethernet)
USB 2.0

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)
Bluetooth 4.22
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
NFC Tag2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing
Interfaces - optional
IEEE 802.11 a/g/n (Wireless LAN)
Network protocols - standard
TCP/IP (IPv4, IPv6)
Copy speed

A1 LEF—black and white
2.0 cpm—Standard Mode
3.8 cpm—High Speed Mode

A1 LEF—colour
1.2 cpm—Standard Mode
2.1 cpm—High Speed Mode

A0 SEF—black and white
1.1 cpm—Standard Mode
1.9 cpm—High Speed Mode

A0 SEF—colour
0.6 cpm—Standard Mode
1.1 cpm—High Speed Mode

First copy time

A1 LEF—black and white
41 seconds—Standard Mode
29 seconds—High Speed Mode

A1 LEF—colour
84 seconds—Standard Mode
53 seconds—High Speed Mode

A0 SEF—black and white
71 seconds—Standard Mode
51 seconds—High Speed Mode

A0 SEF—colour
155 seconds—Standard Mode
81 seconds—High Speed Mode

Copy resolution
600 dpi
Zoom range
25%–400% in 0.1% steps
Enlargement ratios
141.4%, 200%, 282.8%, 400%
Reduction ratios
25%, 35.4%, 50%, 70.7%
User codes
1,000 user codes, 8 digits in each code
Print speed colour
2.1 ppm—A1 LEF
Print speed black and white
3.8 ppm—A1 LEF
Print resolution

Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpi

Standard Mode
600 x 600 dpi

Quality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpi

Quality Priority Mode with other paper types
600 x 600 dpi

Page description languages (PDLs)
Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF
Printer drivers
Adobe PostScript 3
Print from USB/SD
Supported—JPEG, TIFF, PDF
Scan speed
Black and white
26.5 mm/second—2,400 dpi
53.3 mm/second—1,200 dpi
106.7 mm/second—600 dpi
160 mm/second—150, 200, 300, 400 dpi
8.8 mm/second—2,400 dpi
17.6 mm/second—1,200 dpi
35.3 mm/second—600 dpi
53.3 mm/second—150, 200, 300, 400 dpi
Scan methods
Scan to USB/SD, Scan to email, Scan to folders (FTP, SMB)
Colour scanning
Scan resolution
150, 200 (default), 300, 400, 600 dpi—Scan to email/folder
150–2,400 dpi—TWAIN

Note: 2,400 dpi is only supported using A4 paper.
Scan to email
TWAIN scanning
Scan mode
Standard, Photo, OCR, Filing
User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication
Windows 8.1
Windows 10
Windows Server 2012/2012 R2
Windows Server 2016
Windows Server 2019
OS X Native 10.14, 10.15, 11—PostScript 3 only
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v6.1, v7.1, v7.2
@Remote Embedded
Web Image Monitor
RICOH Streamline NX v3
Global Scan NX
Enhanced Locked Print NX v2
Enhanced Locked Print NX FlexRelease Server v2
Card Authentication Package v2
Card Authentication Package Enterprise Server v2
Device Manager NX Lite
Device Manager NX Accounting
Power source
220–240 V, 50/60 Hz, 1.9 A
Power consumption
113 W—maximum power, mainframe
135 W—maximum power, full configuration
89 W—operating, black and white
86.9 W—operating, colour
48.8 W—Ready Mode
45.7 W—Low Power Mode
0.65 W—Energy Saver Mode (Sleep Mode)
Warm-up time
40 seconds or less
