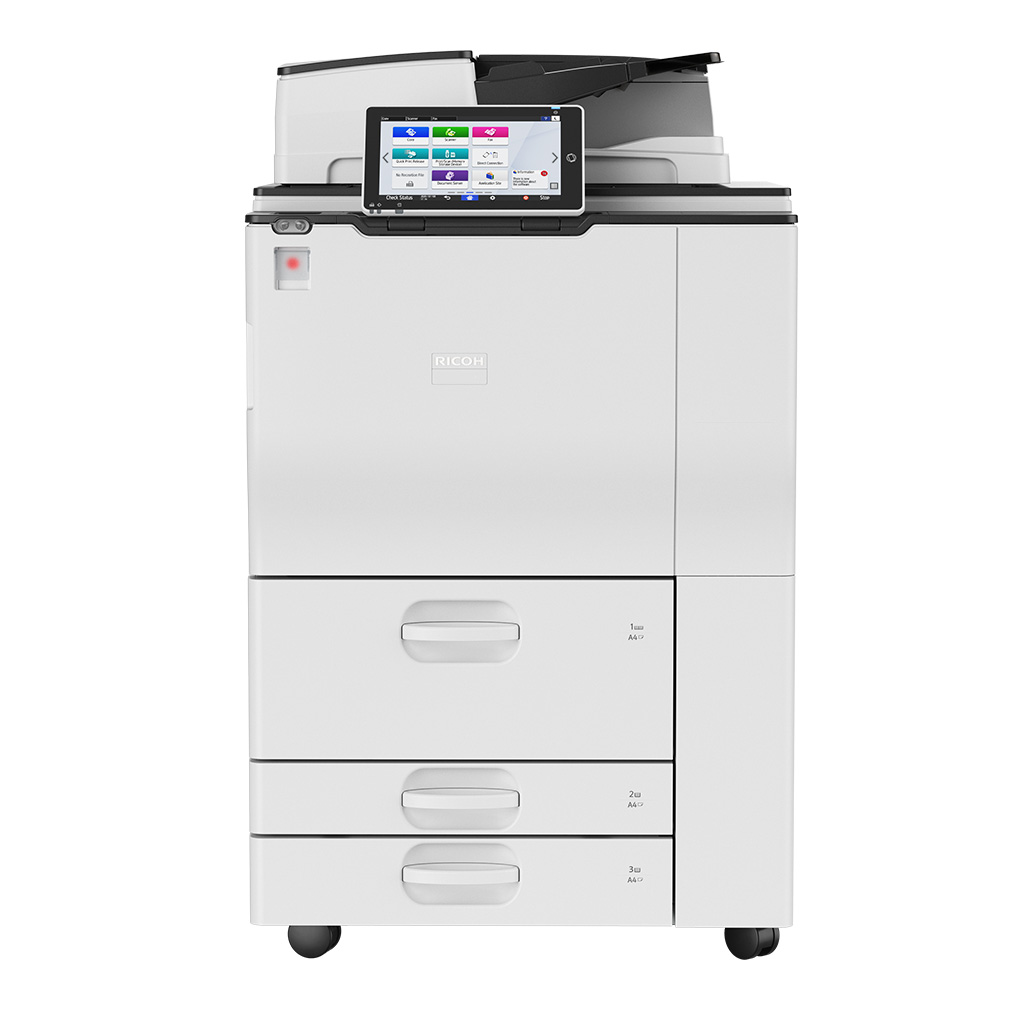

IM 7000 A3 black and white multifunction printer

  • Copy, print, scan, optional fax
  • Prints up to 70 ppm
  • 8,700-sheet max input
  • RICOH Always Current Technology

Work smart with instant support

Automated upgrades, RICOH Intelligent Support* and RemoteConnect Support mean less reliance on service calls and more rapid solutions provided remotely. IT managers can even use the Remote Panel Operation Tool in-house to address fleet issues.

*When enabled, internet connection required.

Professional prints and quick & secure document transfers

Send invoices, contracts and statements digitally and securely. Simply scan documents to email or fax using data encryption, and require user authentication for an extra layer of security. When it comes to professional hardcopy documents like reports and brochures, choose from a wide range of finishing options including hole punching, folding, sorting and stapling. Access all this functionality from your smartphone or tablet for better time management.


  1. Fast scanning speeds
    Send 220 black & white and 240 colour scans per minute effortlessly.
  2. Versatile paper choices
    Print on paper stock from weights as thin as 52g/m2 or as thick as 300g/m2.
  3. No waiting around on prints
    First print ready in under 5 seconds.
  4. Digitise your hardcopies in editable file formats
    Simply scan to convert cumbersome paper documents into ever ready Excel, Word or PDF documents.

Download PDF Brochure


Specifications

Functions
Copy, print, scan, optional fax
HDD
320 GB
Memory - standard
2 GB
Operation panel
10.1-inch Smart Operation Panel (G2.5)
Physical dimensions (WxDxH)—mainframe
690 x 883 x 1,161 mm
Weight—mainframe
200 kg
Standard input capacity (sheets)
4,300
Maximum input capacity (sheets)
8,700
Maximum output capacity (sheets)
3,500
Paper input configuration - standard
1,550-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
Supported media

Plain paper1, recycled paper, colour paper 1–2, special paper, letterhead, bond paper, tracing paper, label, plain paper 1–2, middle thick, thick paper 1–4

1—Not displayed as paper type

Maximum paper size
A3
Media weight (g/m2)
52.3–300
Interfaces - standard
Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB 2.0 Host Type A—2 ports
USB 2.0 Device Type B—1 port

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)1
Bluetooth 4.22
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
NFC Tag2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing
Interfaces - optional

IEEE 1284
IEEE 802.11 a/b/g/n (Wireless LAN)
Device Server Option Type M37 (additional NIC port)
Copy Connector Type M25

Network protocols - standard
TCP/IP (IPv4, IPv6)
Copy speed
70 cpm
First copy time
3.2 seconds
Copy resolution
600 x 600 dpi—scanning
1,200 x 1,200 dpi—printing
Zoom range
25%–400% in 1% steps
Enlargement ratios
400%, 200%, 141%, 122%, 115%
Reduction ratios
93%, 82%, 75%, 71%, 65%, 50%, 25%
Duplex copy
Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
Book copy
Booklet, magazine, layout, and booklet
ID card copy
Supported
Print speed black and white
70 ppm
First print time
4.7 seconds or less
Print resolution
300 x 300 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
Page description languages (PDLs)

Standard
PCL 5e, PCL 6, PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS

Printer drivers

PCL 6, PostScript3 emulation

Duplex printing
Standard
Mobile printing
RICOH Smart Device Connector
Print from USB/SD
Supported
Scan speed
Via SPDF
120 ipm—simplex
240 ipm—duplex
Scan methods
Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
Colour scanning
Standard
Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: Maximum scan size for 1,200 dpi is A5.
Scan to file types
Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page High-Compression PDF
Scan to email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

Multi-page
TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan to folder

Protocols
SMB, FTP, WSD (Web Services on Devices for Scanning)

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folders file types
Single-page
TIFF, JPEG, PDF, PDF/A, High-Compression PDF

Multi-page
TIFF, PDF, PDF/A, High-Compression PDF

TWAIN scanning
Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100–1,200 dpi
Note: Maximum scan size for 1,200 dpi is A5.
Fax types
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit
PSTN, PBX
Fax compatibilty
ITU-T (CCITT), G3—maximum 3 lines
Fax modem speed
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods
MH, MR, MMR, JBIG
Fax resolution

Standard Mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail Mode
200 x 200 dpi—8 x 7.7 lines/mm

Super Fine Mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super fine mode is supported with the optional SAF memory.

G3 fax transmission speed
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Fax SAF memory capacity
Standard—4 MB, approximately 320 pages
With optional SAF memory—60 MB, approximately 4,800 pages
Fax memory backup
1 hour
Quick dials
2,000 numbers
Data Overwrite Security System (DOSS) - Standard
Yes
Data Overwrite Security System (DOSS) - Optional
Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
Encryption
PDF, Secure print encryption
Authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
Authentication
802.1x wired authentication
IEEE 802.11i security (WEP, WPA)
IPv6
Quota setting/Account limit
User authentication—Windows and LDAP via Kerberos, basic, user code
User code authentication
Wi-Fi Protected Setup (WPS) support
Windows
Windows 7
Windows Server 2008
Windows Server 2008 R2
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh
OS X Native v10.12 or later—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP
Environment—R/3, S/4
Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page Description Language (PDL)—PCL
Character set—Latin-1, Latin-2, Unicode
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN
OCR fonts—OCR A, OCR B
Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication
Standard
@Remote Embedded
Web Image Monitor
Optional
@Remote
Streamline NX v3
Global Scan NX
Card Authentication Package
Enhanced Locked Print NX
Device Manager NX Lite
Device Manager NX Accounting
Printer Driver Packager NX
@Remote Connector NX
Mobile apps
RICOH Smart Device Connector
Power source
220–240 V, 8.5 A, 50/60 Hz
Power consumption
1,900 W or less—maximum power
1,140 W or less—operating power
400 W or less—Ready Mode
163 W or less—Low Power Mode
0.6 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
1.326 kWh
Warm-up time
20 seconds or less
Power saving mode
1 minute shift time—Energy Saver Mode (Sleep Mode)
1 minute shift time—Low Power Mode
Recovery time
20 seconds—Energy Save Mode (Sleep Mode)
10 seconds—Low Power Mode
Other environmental features
Eco-friendly indicator, Energy Saver Timer
