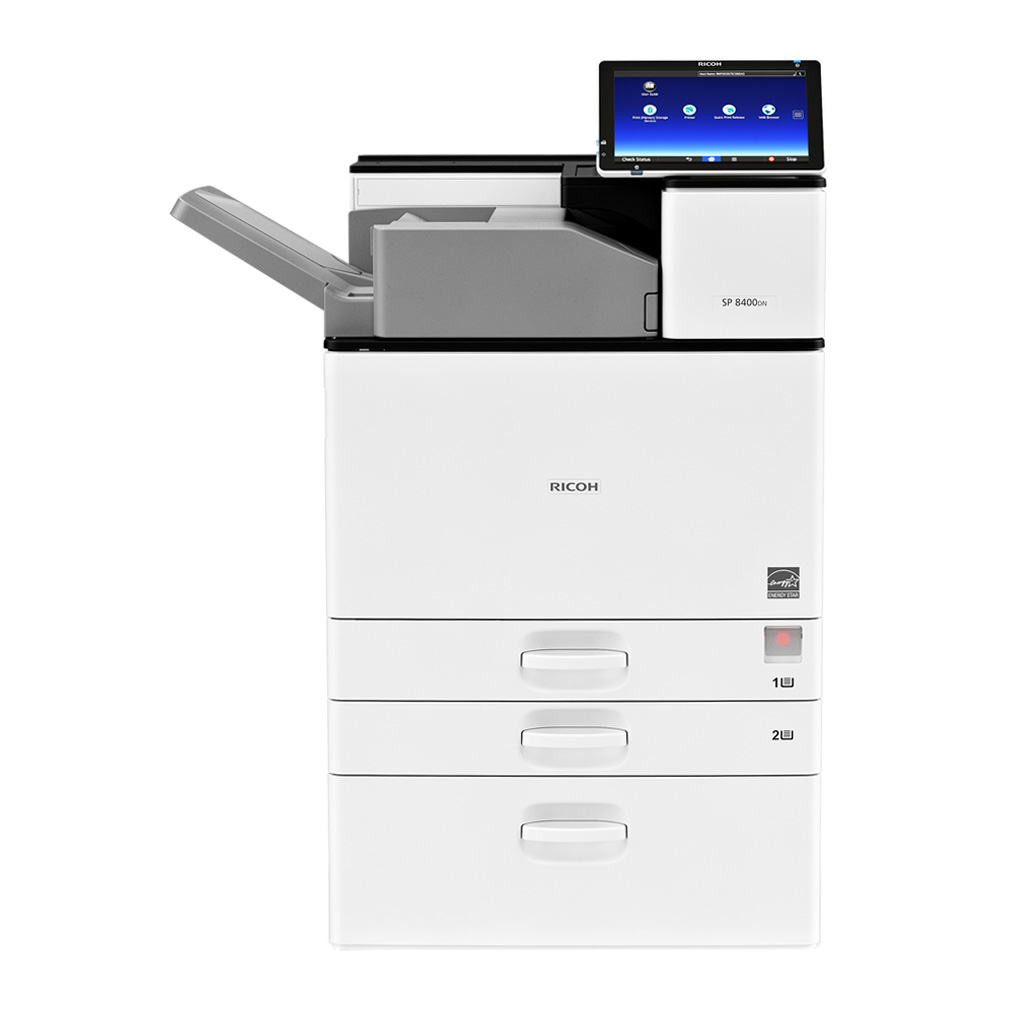

SP 8400DN A3 black and white printer
- Produces up to 60 prints per minute
- First page printed in under 3 seconds
- Multiple finishing options for versatility
- Environmentally friendly with low energy use
Versatile printer that can produce postcards and posters in house, saving time and money
When time is critical, you need a printer that can print it all, and fast. The SP 8400DN has the speed and capability to produce documents quickly on all types of media, expanding your capabilities.
Low environmental impact, added flexibility
Save money and produce invoices, mailers, reports, booklets and more in-house, finished and ready to go. Access documents from the easy to use Smart Operation Panel that offers functionality to improve business workflows. Never slow down with an overall printing speed of 60 prints per minute, in a low maintenance machine. High capacity paper trays and double sided printing come standard to keep up with demand.
- Simple to use
Intuitive touchscreen Smart Operation Panel for easy operation. - Environmentally minded
Lower power consumption with Energy Saver mode, and a quick recovery time. - Advanced security features
Data encryption, user authentication and optional Hard Disk Overwrite protection keeps information secure. - Versatile media options
Supports paper sizes up to A3 and stocks up to 300 g/m2.
Specifications
- Functions
- HDD
- 320 GB—optional
- Memory - Standard
- 2 GB
- Operation Panel
- 10.1-inch Smart Operation Panel
- Physical Dimensions
- 587 x 653 x 720 mm—including the projection size of Smart Operation Panel
587 x 685 x 247 mm—550-sheet x 2 paper bank PB3240
587 x 685 x 247 mm—1,000‑sheet x 2 LCT PB3260
340 x 544.5 x 290 mm—1,500‑sheet LCT RT3030
563 x 620 x 960 mm—1,000-sheet finisher SR3210
657 x 613 x 960 mm—3,000-sheet finisher SR3230
612 x 555 x 184 mm—Internal multi-folding option FD3000
412 x 466 x 143 mm—Bridge unit BU3070
143 x 539 x 218 mm—Output jogger unit Type M25
555 x 544 x 506 mm—4-bin mailbox CS3010 - Weight—Other
- 57 kg or less—mainframe, with consumables
22 kg or less—550-sheet x 2 paper bank PB3240
22 kg—1,000‑sheet x 2 LCT PB3260
10 kg—1,500‑sheet LCT RT3030
27 kg or less—1,000-sheet finisher SR3210
33.5 kg or less—3,000-sheet finisher SR3230
15 kg—Internal multi-folding option FD3000
3.2 kg or less—Bridge unit BU3070
2 kg or less—Output jogger unit Type M25
13 kg—4-bin mailbox CS3010
- Standard input capacity (sheets)
- 1,200
- Maximum input capacity (sheets)
- 4,700
- Standard output capacity (sheets)
- 500
- Maximum output capacity (sheets)
- 4,000
- Physical Dimensions
- Standard paper input tray and paper bank
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, envelope, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4
Bypass tray
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, envelope, label paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4, thin paper - Paper thickness
- 52–59 g/m²—thin paper
60–74 g/m²—plain paper 1
75–81 g/m²—plain paper 2
82–105 g/m²—middle thick paper
106–169 g/m²—thick paper 1
170–220 g/m²—thick paper 2
221–256 g/m²—thick paper 3
257–300 g/m²—thick paper 4 - Maximum paper size
- A3
- Media weight (g/m2)
- 52–300
- Interfaces - standard
- 10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Host interface Type A x 2 - Interfaces - Optional
- USB 2.0 Type B
IEEE 1284 Type A
IEEE 802.11a/b/g/n (Wireless LAN)
USB Device Server - Network capable
- Yes
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
- Print speed - black and white
- 60 ppm
- Printing process
- Electrophotographic printing with laser beam
- Print Resolution
-
1,200 x 1,200 dpi - Printer Drivers
- Standard
PCL 5e, PCL 6, PostScript 3 - Duplex printing
- Standard
- Maximum printable area
- A3
- Data Overwrite Security System (DOSS) - Standard
- Yes
- Encryption
- Encryption—HDD, address book, authentication password
- Encryption
- 802.1.x wired authentication
User authentication—Simple LDAP authentication, Kerberos, user code
Wireless LAN security—WEP, WPA2, IEEE 802.11w
WiFi Protected Setup (WPS)
Quota setting
- Windows Environments
-
Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
- Macintosh
- OS X Native v10.9 or later—PostScript 3 emulation only
- UNIX
- Sun Solaris 9, 10
HP-UX 11.x, 11iv2, 11iv3
Red Hat Linux Enterprise v4, v5, v6
SCO Open Server 5.0.7, 6.0
IBM AIX 5L v5.3, v6, v7.1 - SAP
- Environment—R/3, S/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, MSI, USPS, POSTNET, UPC/EAN
OCR fonts—OCR A, OCR B - Other supported environments
- Novell - Netware—6.5 or later
- Supported languages
- Default
English, German, French, Italian, Spanish, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Greek, Brazilian Portuguese, Thai, Simplified Chinese, Traditional Chinese, Korean
Selectable by user
Selectable by administrator
- Power consumption
- 1,780 W or less—maximum power
825.1 W—operating power
43.4 W—Ready Mode
0.89 W—Energy Saver Mode (Sleep Mode)
15 W or less—1,000-sheet LCT PB3260
13 W or less—1,500-sheet LCT RT3030
35.4 W or less—1,000-sheet hybrid finisher SR3210
67 W or less—3,000-sheet finisher SR3230
15 W or less—Output jogger Type M25
12 W—Bridge unit BU3070 - Typical Electricity Consumption (TEC)
- 2.7 kWh
- Warm-up time
- 21 seconds or less
- Power saving mode
- 1 minute default—Auto switch—Energy Saver Mode (Sleep Mode)
- Recovery time
- 7 seconds—Energy Saver Mode (Sleep Mode)
- Reduction of environmentally sensitive materials
- Restriction of Hazardous Substances (RoHS)
WEEE
EPEAT (Gold) - Energy saving standards
- Energy Star (Version 2.0), Energy Efficiency Labelling Scheme (Hong Kong)
- Green labels
- BAM, Thai Green Label—target
- Safety Standards
- IEC60950-1 (CB)
EN 60950-1 (including GS Mark)
BIS - Identification of plastic components
- All plastic components that weigh more than 25 g are identified in accordance with DIN54840 and ISO 11469 standards
- Electromagnetic Compatibility (EMC) standards
- EMC
Australia/NZ EMC (RCM Mark)
EN62311
EAC Mark (CU-TR)
