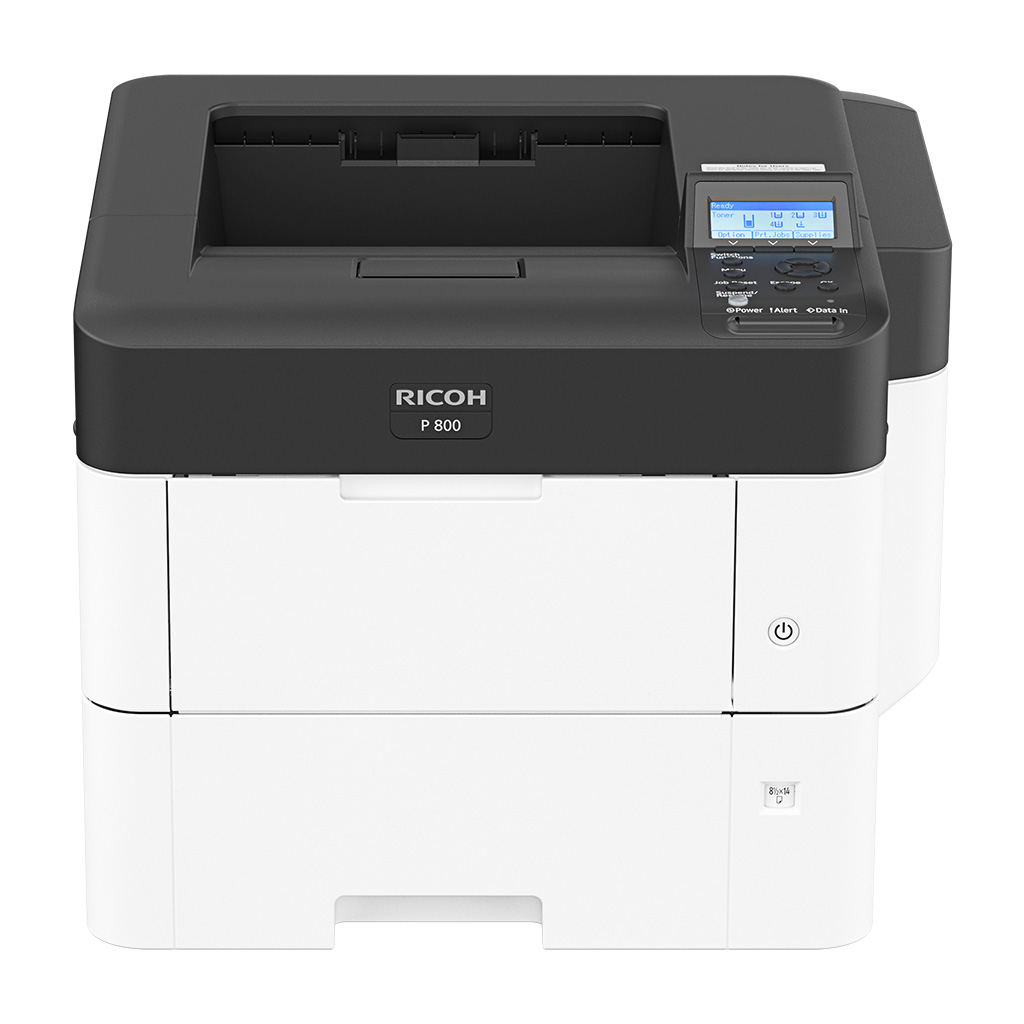

P800
A4 black and white single-function printer
- 10,000-sheet starter toner
- Prints up to 55 ppm
- Mobile printing
- Max 2,600-sheet input
The P 800 provides fast prints speeds up to 55 ppm and delivers crisp 1,200 x 1,200 output.
Easy feature navigation is provided by a 4-line LCD panel, while PostScript 3 and PDF Direct emulation as standard allow customers to produce professional documents accurately out of the box.
Budget conscious customers will find this printer attractive because of the 10,000-page starter toner cartridge. It also has low Typical Electricity Consumption (TEC) values that make it affordable to operate.
Up to four optional paper feed units can be added to bring the maximum input capacity to 2,600 sheets, making these printers ideal for large printing jobs.
Specifications
- Functions
- HDD
- 320 GB—optional
- Memory - Standard
- 2 GB
- Operation Panel
- 4-line LCD
- Physical Dimensions
- Standard : 420mm x 410mm x 346mm
Maximum : 778mm x 808mm x 890mm
380 x 410 x 121 mm—Paper Feed Unit PB1160
778 x 808 x 64 mm—Caster Table Type M40 with anti-tipper
380 x 410 x 64 mm—Caster Table Type M40 without anti-tipper - Weight—Other
- 18 kg or less
4 kg or less—Paper Feed Unit PB1160
11 kg or less—Caster Table Type M40
- Standard input capacity (sheets)
- 500 sheets (excluding bypass 100 sheets)
- Maximum input capacity (sheets)
- 2,600 sheets (including bypass 100 sheets)
- Standard output capacity (sheets)
- 500 sheets standard/maximum
- Maximum output capacity (sheets)
- 500
- Physical Dimensions
- Standard tray, duplex unit
Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper
Bypass tray
Thin Paper, Plain Paper 1–2, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, OHP, Label Paper, Envelope
Paper Feed Unit PB1160
Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Envelope - Paper thickness
- 60–63 g/m2—Thin Paper
64–74 g/m2—Plain Paper 1
75–90 g/m2—Plain Paper 2
91–105 g/m2—Middle Thick Paper
106–135 g/m2—Thick Paper 1
136–170 g/m2—Thick Paper 2
171–220 g/m2—Thick Paper 3, Envelopes - Maximum paper size
- A4
- Media weight (g/m2)
- 60–220
- Interfaces - standard
- Ethernet 10base-T/100base-TX/1000base-T
USB Device 2.0
USB Host Type A (2 ports)
NFC tag - Interfaces - Optional
- IEEE 1284
Wireless LAN (IEEE 802.11 a/b/g/n)
USB Device Server (additional Ethernet/Gigabit Ethernet port) - Network capable
- Yes
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
- Print speed black and white
- 55 ppm
- Print speed black and white
- Dry electrostatic transfer system with laser exposure method. One-component jumping development system
- Print Resolution
- PCL 5e
600 x 600 dpi (1-bit)
300 x 300 dpi (1-bit)
PCL 6, PostScript 3
600 x 600 dpi (1-bit)
1,200 x 1,200 dpi (1-bit) - Page description languages (PDLs)
- Standard
PCL 5e, PCL 6 (XL), PostScript3 emulation, PDF Direct emulation
Optional
Adobe PostScript 3, Adobe PDF Direct, IPDS, XPS - Printer Drivers
- Standard
PCL 5e, PCL 6 (XL), PostScript3
Optional
Adobe PostScript 3 - Duplex printing
- Standard
- Maximum printable area
- 216 x 356 mm
- Data Overwrite Security System (DOSS) - Standard
- With optional HDD
- Encryption
- HDD encryption
Authentication password
S/MIME - Encryption
- 802.1x wired authentication
IEEE 802.11i security (WPA)
Quota setting/Account limit
User code authentication—8 digits, 1,000 user codes
User authentication—Windows and LDAP via Kerberos, basic
WiFi Protected Setup (WPS) support
- Windows Environments
- Windows Environments
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Vista
Windows 7
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows 10
Windows Server 2019
- Macintosh
- OS X v10.11 or later
- UNIX
- UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux, IBM® AIX
- SAP
- SAP® R/3®, SAP® S/4®
- Other supported environments
- Caster Table Type M40, PostScript3 Unit Type P19, XPS Direct Print Option Type M40, IPDS Unit Type M40, IEEE 1284 Interface Board Type M19, IEEE 802.11 Interface Unit Type M24, Device Server Option Type M37, VM CARD Type M37, Hard Disk Drive Option Type P8, Unicode Font Package for SAP License
- Supported languages
- Default
English, French, Spanish, Brazilian Portuguese, German, Italian, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Greek, Thai
Selectable by user
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Portuguese, 11. Norwegian, 12. Czech, 13. Hungarian, 14. Turkish, 15. Polish, 16. Finnish, 17. Catalan, 18. Greek, 19. Brazilian Portuguese, 20. Korean, 21. Simplified Chinese, 22. Traditional Chinese, 23. Japanese
Selectable by administrator
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Portuguese, 11. Norwegian, 12. Czech, 13. Hungarian, 14. Turkish, 15. Polish, 16. Finnish, 17. Catalan, 18. Greek, 19. Brazilian Portuguese, 20. Simplified Chinese
- Power consumption
- 1,400 W—maximum power
68 W—Ready Mode
2.9 W—SleepMode - Typical Electricity Consumption (TEC)
- 2.7 kWh
- Warm-up time
- 25.4 seconds or less
- Recovery time
- 10 seconds or less—from Ready Mode, 24 seconds or less—from Energy Saver Mode (Sleep Mode)
- Safety Standards
- EN60950-1
IEC60950-1
AS/NZS60950
EAC
Restriction of Hazardous Substances (RoHS) - Identification of plastic components
- All plastic components that weigh more than 25 g are identified in accordance with DIN 54840 and ISO 11469 standards.
- Electromagnetic Compatibility (EMC) standards
- EN55032
EN55024
EN61000-3-2
EN61000-3-3
AS/NZS CISPR32
EAC
