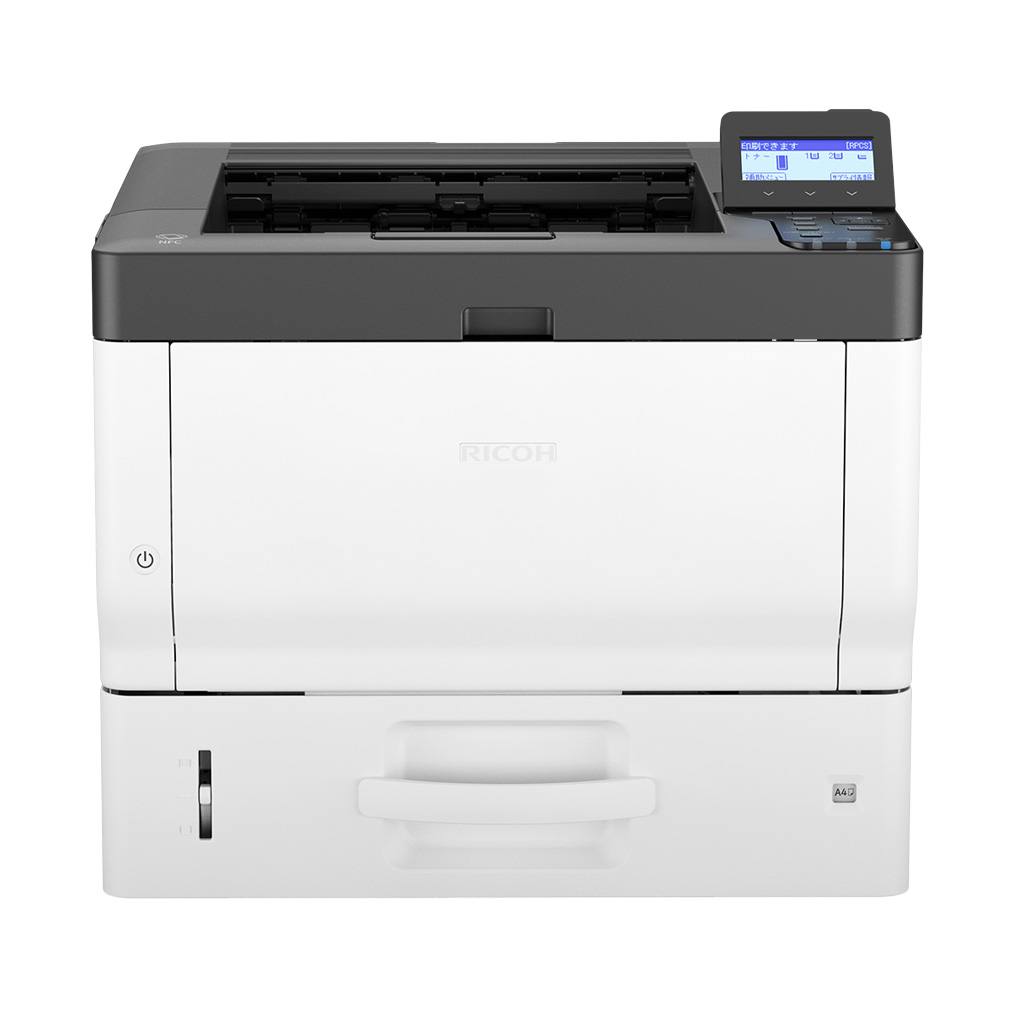

P 502 A4 black and white printer

Envelope and label printing
Prints up to 43 ppm
Standard PostScript 3 and PDF Direct
RICOH Smart Device Connector

Compact and Durable

Ricoh’s leading LED printer maintains exceptional speed, quality and reliability throughout long runs. Its powerful Intel 1.1 - 1.3 GHz processor effortlessly processes complex jobs and eliminating bottlenecks, the printer delivers its first pristine 1,200 x 1,200 dpi print in under 5 seconds. Multi-page document sets are produced at a blistering 43 pages per minute.

Excellent performance
Maximum input capacity of 2,100 sheets with optional paper banks provide longer uninterrupted print runs.
High quality output
Maximum 1,200 x 1,200 dpi print resolution ensures sharp and crisp text every time.
Reliable and easy to use
Compact footprint enables devices to be installed in almost any location—from office desks to under retail shop counters.
Security in our DNA
DataOverwriteSecurity System (DOSS) keeps hard drive contents protected, making all confidential data unrecoverable by overwriting latent digital images after all print jobs.

Download PDF brochure

Specifications

Functions: Print
Colour: No
Storage: 320 GB—optional
Memory - standard: 2 GB
Operation panel: 4-line LCD

Physical dimensions (WxDxH)—mainframe: 375 x 412 x 311 mm
Weight—mainframe: 19.3 kg

Standard input capacity (sheets): 600
Maximum input capacity (sheets): 2,100
Standard output capacity (sheets): 250
Maximum output capacity (sheets): 250
Paper input configuration - standard: 500-sheet paper input tray, 100-sheet bypass tray, duplex unit
Paper output configuration - standard: 250-sheet face-down paper output tray
Supported media: Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
Maximum paper size: A4
Media weight (g/m2): 52–256

Interfaces - standard: 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB 2.0
USB Host 2.0
Interfaces - optional: One of these can be installed:
USB Device Server (additional Ethernet/Gigabit Ethernet port)
IEEE 802.11a/b/g/n (Wireless LAN)
IEEE 1284
Network protocols - standard: TCP/IP (IPv4, IPv6)

Print speed black and white

43 ppm—A4 LEF, simplex
37 ppm—A4 LEF, duplex

First print time

4.3 seconds or less

Print resolution

1,200 x 1,200 dpi

Page description languages (PDLs)

Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, IPDS

Note: HDD option is required if the IPDS option is installed.

Printer drivers

PCL 5e, PCL 6, PostScript 3

Duplex printing

Standard

Mobile printing

Yes

Data Overwrite Security System (DOSS) - Standard: Yes—with optional HDD
Encryption: HDD encryption—with optional HDD
Authentication password encryption
Authentication: User authentication—Windows and LDAP via Kerberos, Basic, User Code
802.1x wired authentication
Wireless LAN security (WEP, WPA2, 11i)
IPv6
Quota setting
WiFi Protected Setup (WPS) support

Windows: Windows 7
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh: OS X Native v10.10 or later—PostScript 3 only
Unix: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP: Environment—R/3, S/4
Platforms—SAP R/3 (release versions 3.0 and above), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page description language—PCL
Character sets—Latin-1, Latin-2, Unicode
Supported features—Input/output bin, Duplex, Resolution, Collation, EconoMode/Toner saving, Page protect, Auto tray change/Opt tray select ,User authentication
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
OCR fonts—OCR A, OCR B
IBM: iSeries/AS/400—Using OS/400 Host Print Transform

Standard: @Remote Embedded
Web Image Monitor
Optional: RICOH Streamline NX v2 and v3
Enhanced Locked Print NX v2 and FlexRelease Server v2
FlexRelease CX
Card Authentication Package v2 and Enterprise Server v2
Device Manager NX Lite and Accounting
Printer Driver Packager NX
Device Manager NX Pro and Enterprise
RICOH @Remote Connector NX
Mobile apps: Smart Device Connector

Power source: 220–240 V, 7 Amps, 50/60 Hz—Asia Pacific
110 V, 12 Amps, 60 Hz—Taiwan
Power consumption: 1,260 W or less—maximum power, guaranteed
597 W—printing, nominal
79.6 W—Ready Mode, nominal
0.63 W—Energy Saver Mode (Sleep Mode), nominal
Typical Electricity Consumption (TEC): 0.54 kWh
Warm-up time: 13 seconds or less
Power saving mode: 1 minute; default shift time—Energy Saver Mode (Sleep Mode)
Recovery time: 10 seconds or less—Energy Saver Mode (Sleep Mode)
Green labels: Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme, Blue Angel Mark (BAM)
