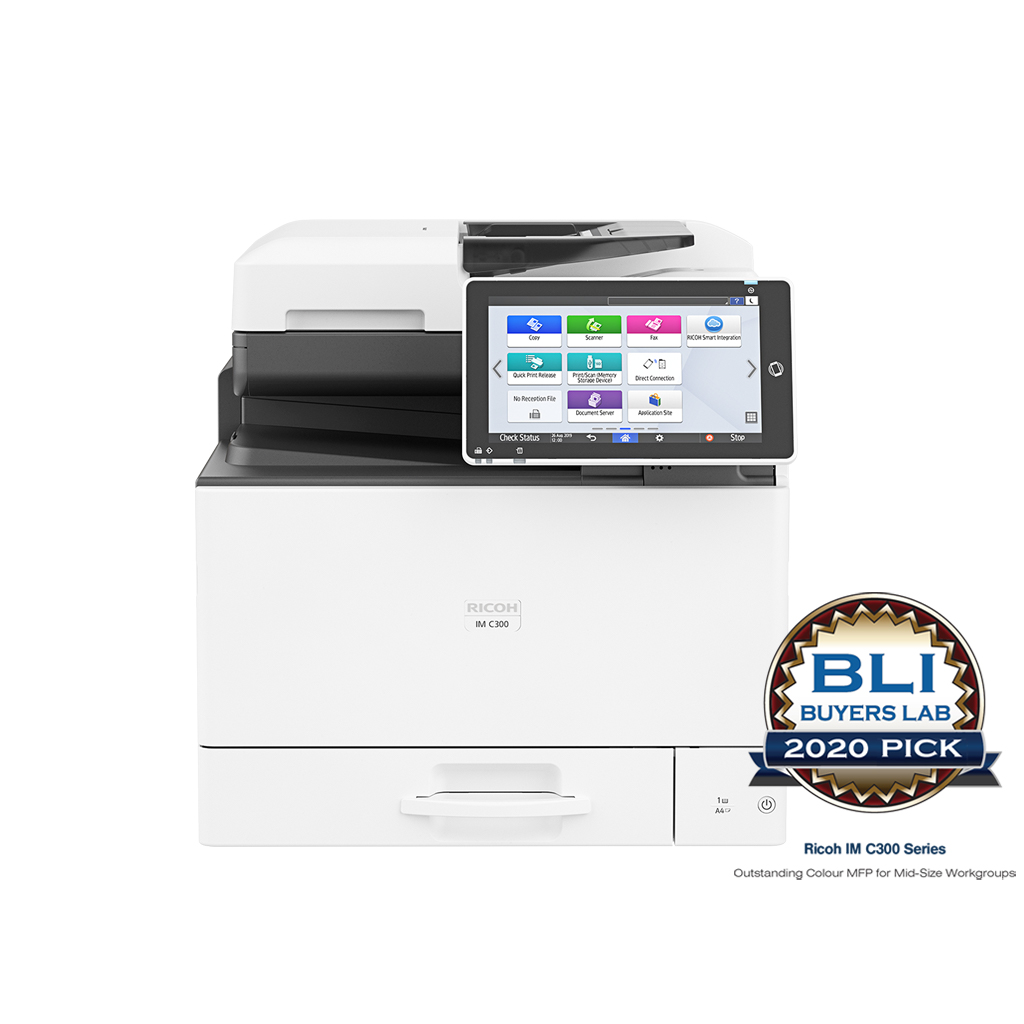

IM C300F A4 colour multifunction printer

  • Print, copy, scan and fax
  • Produces up to 30 colour prints/copies per minute
  • Print upto 999 copies at a time
  • Print resolution scalable upto 1,200 x 1,200/1bit

Download PDF Brochure

Get in touch

Deliver documents in more ways to more people. The IM C300F offers fast-paced scanning and printing without losing speed.

  • Low energy use
    Energy Star 2.0 accredited with low energy consumption.
  • Affordable for the long-term
    Default double-sided printing cuts paper use and Sleep Mode responds to ambient room light.
  • More accessible
    More ways to work with Java for web browsing as well as USB and SD card access.
  • Security measures
    Release documents with user authentication and overwrite data left on the hard drive after each job.

Quick action, low cost

Finish documents in vibrant colour, from a device that fits in a small corner. Print at speeds of 30 pages per minute without losing pace. Portable media and optional wireless connectivity give more flexibility. Access your favourite settings via the Smart Operation Panel with one touch shortcuts. Widgets can be added to optimise visibility, track use. Embedded Java means you can browse the web and download software. Reduce costs with user authentication and print quotas to cut paper waste.

Extra office support

Less time waiting, more time doing. The IM C300F’s fast warm up and recovery from sleep times keeps you moving, with the 1.46 GHz Intel processor and 2GB RAM delivering fast processing. Need to get a job done? Access the device from your smartphone or tablet with the Ricoh Smart Device Connector App to print, scan or fax remotely.

Specifications

Functions
Copy, print, scan, fax
HDD
320 GB
Memory - Standard
2 GB
Operation Panel
10.1-inch Smart operation panel
Physical Dimensions
498 x 561 x 510 mm—mainframe including SPDF and operation panel
Weight—Other
47 kg or less—mainframe including SPDF and operation panel
10.4 kg or less—500-sheet paper bank PB1080
3 kg or less—1-bin tray BN1030
Standard input capacity (sheets)
250
Maximum input capacity (sheets)
2000
Standard output capacity (sheets)
200
Maximum output capacity (sheets)
200
Physical Dimensions
Paper input trays
Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Label paper, OHP, Back copied paper, Waterproof paper

Bypass tray
Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Label paper, OHP, Back copied paper, Waterproof paper

Maximum paper size
A4
Media weight (g/m2)
60–220
Interfaces - standard
Mainframe
Ethernet 10 base-T/100 base-TX/1000 base-T
USB Host I/F Type A
USB Device I/F Type B
Interfaces - Optional
Bi-directional IEEE 1284/ECP,
Wireless LAN (IEEE 802.11a/b/g/n)
Network capable
Yes
Network protocols - standard
TCP/IP (IPv4, IPv6)
Copy speed
30 cpm—black and white and colour
First copy time
7.2 seconds or less—black and white, 8.6 seconds or less—colour
Copy resolution
600 dpi
Zoom range
25%–400% in 1% steps
Duplex copy
Single-sided to duplex, duplex to duplex—via SPDF, book to duplex, front and back to duplex
ID card copy
Supported
Print speed - black and white
30 ppm
Print speed - colour
30 ppm
Printing process
Single laser beam scanning and electrophotographic printing
Print Resolution
Print resolution
1,200 x 1,200 dpi

Page description languages (PDLs)
Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, PictBridge

Printer Drivers
Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Adobe PostScript 3

Universal printer driver
PCL 6, available from the Ricoh website only

Duplex printing
Standard
Maximum printable area
Standard tray 216 x 356 mm, Bypass tray 216 x 600 mm
Scan speed

Black and White
30 ipm

Colour
40 ipm—simplex
80 ipm—duplex
Scan methods
Scan to USB/SD, Scan to email, Scan to webmail, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to PDF digital signature, Scan to searchable PDF
Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi
Scan to file types

Single- and multi-page TIFF
Compression On—black and white 1-bit—MH, MR, MMR
Compression Off—black and white 1-bit, black and white greyscale, full colour

Single-page JPEG
Compression On—black and white greyscale, full colour

Single- and multi-page PDF, PDF/A
Compression On—black and white 1-bit—MH, MR, MMR, JBIG2
Compression On—black and white greyscale, full colour—JPEG
Compression Off—black and white 1-bit, black and white greyscale, full colour

Single- and multi-page high compression PDF
Compression On—black and white greyscale, full colour—JPEG, JPEG 2000
Scan to folder

Protocols
SMB, FTP

Authentication
Client folder logon, transmission encryption of logon name and password

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Client folder addresses stored in HDD
2,000 maximum registered folder addresses

Destination folder address input via operation panel
SMB—network path->client folder->password
FTP—server->network path->user account->password

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Homefolder over LDAP
Supported

Maximum client folders/PCs per send
50 folders

Simultaneous transmission
550 maximum destinations

Maximum group addresses
100 destinations from a maximum of 50 folders, 100 email addresses

Input file name
Supported

Input subject
Maximum 128 characters via operation panel

Maximum file size
Default -2,000 MB
When combined with Scan to email . 128–102,400 KB; default 2,048 KB—with restriction. 725 MB—without restriction

Scan to folder file types
Single-page - TIFF, JPEG, PDF, high compression PDF, secure PDF, PDF digital signature
Multi-page - TIFF, PDF, high compression PDF, secure PDF, PDF digital signature

Program registration
Up to 10 programs

Resend
Yes—maximum 3 attempts, No; default Yes
TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
Black and white SPDF—100 x 100 dpi– 600 x 600 dpi in 1 dpi increments Platen glass—100 x 100 dpi—1,200 x 1,200 dpi in 1 dpi increments

Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Half tone Pattern

Endorse
Supported

Stamp originals
Date, Page number, Text

Supported operating systems—32-bit, 64-bit
Windows Server 2003, Windows Server 2008, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2012
Fax types
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit
PSTN, PBX
Fax compatibilty
ITU-T (CCITT), G3
Fax modem speed
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods
MH, MR, MMR, JBIG
G3 fax transmission speed
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Page memory size
4 MB
Fax SAF memory capacity


4 MB, approximately 320 pages
Quick dials
2,000 numbers
Automatic Reduction
Supported
Windows Environments
PCL 5e, PCL 6, and PostScript 3
Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows 10
Windows 8
Windows 7
Windows 8.1
Windows Server 2012
Windows Server 2019
Windows Server 2012 R2
Windows Server 2016

Macintosh
Macintosh OS X Native v10.11 or later
UNIX
UNIX Sun® Solaris
HP-UX
SCO OpenServer
RedHat® Linux Enterprise
IBM® AIX
SAP
SAP® R/3®
SAP® R/4®
Supported languages
Default


Selectable by user


Selectable by administrator


Power consumption
Max - Less than 1,200 W
Ready - 50.6 W

Typical Electricity Consumption (TEC)
0.34 kWh⁄week
Warm-up time
19 seconds or less
Recovery time
3 seconds or less recovery time—Low Power Mode, 18 seconds recovery time—Energy Saver Mode (Sleep Mode)
Energy saving standards
Energy Star v3.0
