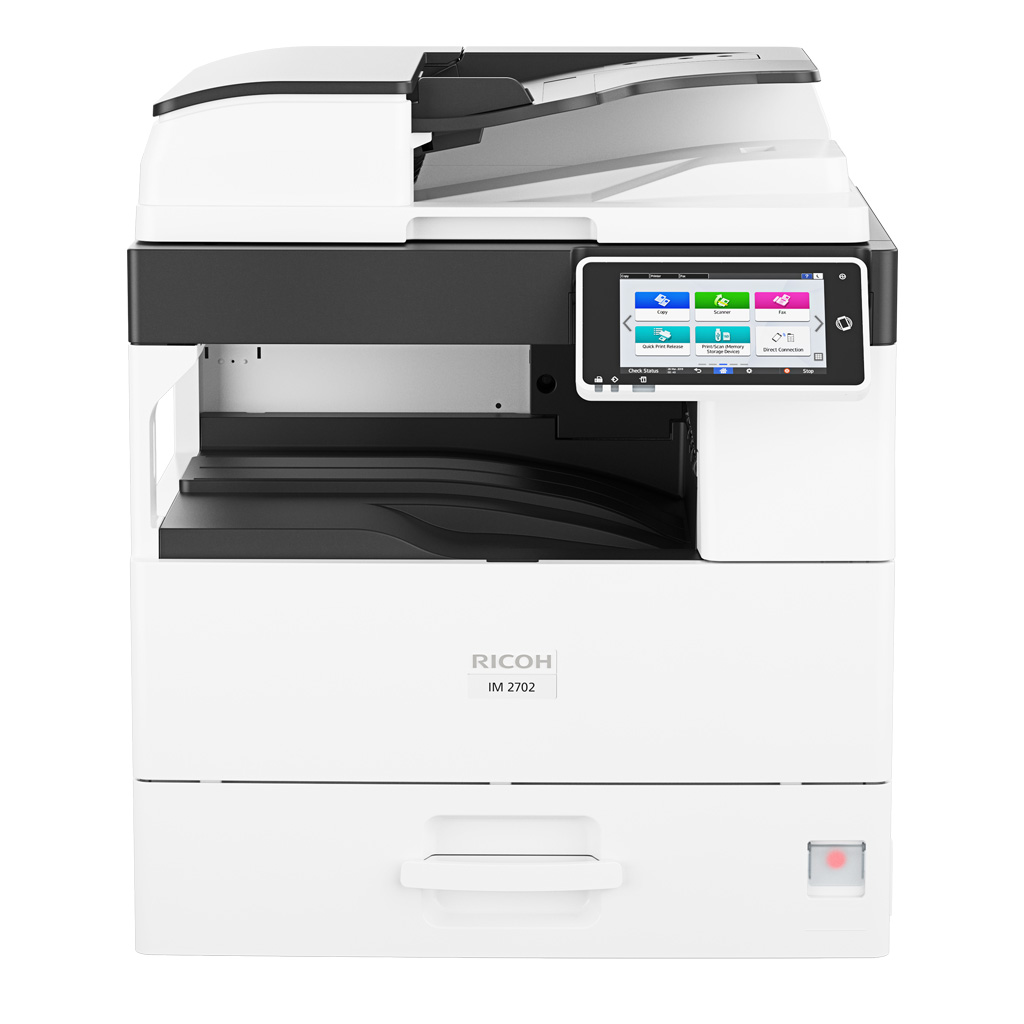

IM 2702 A3 black and white multifunction printer

  • Copy, print, scan, optional fax
  • Prints up to 27 ppm
  • 7" Smart Operation Panel
  • Mobile printing
Configure your device here
Related Links
    Realistically affordable
    The new intelligent A3 mono multifunction printer to empower your workplace

    The new intelligent A3 mono multifunction printer to empower your workplace

    RICOH IM 2702 is a budget friendly device that comes with a host of improved features, making it easier to use and connect to, while at the same time increase productivity. It offers a fast print speed at 27 pages per minute, larger standard paper tray, as well as a new generation 7” Smart Operation Panel.

    1. Easy setup and maintenance
      Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician
    2. Smart operation
      Print or scan documents easily from mobile devices via the Ricoh Smart Device Connector app
    3. Solutions friendly
      Support for cloud workflow applications which connect the device to external cloud services and third-party apps via the RICOH Smart Integration platform
    4. Security in our DNA
      Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device

    Download PDF brochure

    Specifications

    Functions
    Copy, print, scan, optional fax
    Colour
    No
    Storage
    Not available
    Memory - standard
    4 GB—2 GB mainframe + 2 GB Smart Operation Panel
    Operation panel
    7" colour touch operation panel
    Physical dimensions (WxDxH)—mainframe
    587 x 581 x 677 mm—depth including the input tray
    Weight—mainframe
    46.5 kg or less
    Standard input capacity (sheets)
    600
    Maximum input capacity (sheets)
    1,600
    Standard output capacity (sheets)
    250
    Maximum output capacity (sheets)
    250
    Paper input configuration - standard
    500-sheet paper input tray, duplex unit, 100-sheet bypass tray, 100-sheet ARDF
    Paper output configuration - standard
    250-sheet face-down output tray
    Supported media

    Standard paper input tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour Paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

    Bypass tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP, Envelope

    Optional paper banks
    Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

    Maximum paper size
    A3
    Media weight (g/m2)
    52–216
    Interfaces - standard

    Mainframe
    10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
    IEEE802.11a/b/g/n (Wireless LAN)
    USB2.0-Device (Type-B)
    USB2.0-Host

    Smart Operation Panel
    IEEE 802.11 ac/a/b/g/n (Wireless LAN)
    Bluetooth 4.2
    SD card slot—SDHC memory card
    USB Host Type A—for USB Flash memory
    USB Host Type A—1 port for USB keyboard, card reader, or camera
    USB Host Type mini B—for NFC card reader
    microSD card slot—for service engineer access
    NFC tag

    Network protocols - standard
    TCP/IP
    Copy speed
    27 cpm
    First copy time
    6.5 seconds or less
    Copy resolution
    300 x 600 dpi (default), 600 x 600 dpi
    Zoom range
    25–400%
    Enlargement ratios
    115%, 122%, 141%, 200%, 400%
    Reduction ratios
    93%, 82%, 71%, 50%, 25%
    Duplex copy
    Standard
    Book copy
    Not supported
    ID card copy
    Supported
    Print speed black and white
    27 ppm
    First print time
    6.5 seconds or less
    Print resolution
    600 x 600 dpi
    Page description languages (PDLs)
    Standard
    PCL 5e, PCL 6, PostScript 3
    Printer drivers
    Standard
    PCL 5e, PCL 6, PostScript 3 emulation
    Duplex printing
    Standard
    Mobile printing
    AirPrint, Mopria®
    Print from USB/SD
    Supported
    Scan speed
    50 ipm
    Scan methods
    Scan to email, Scan to folder (SMB), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to USB/SD
    Colour scanning
    Standard
    Scan resolution
    100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
    Scan to file types

    Single- and multi-page TIFF
    Single- and multi-page PDF
    Single-page JPEG (greyscale)
    Single- and multi-page high compression PDF

    Scan to email

    Protocols
    SMTP gateway, POP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

    Scan to email file types
    JPEG, PDF—true colour, greyscale
    TIFF, PDF—black and white

    Scan to folder

    Protocols
    SMB

    Security
    LanMan1.0, NTLMv1/v2, GSS API

    Resolution
    100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi,  600 x 600 dpi

    Search for client folders
    By name and ID

    Scan to file types
    JPEG, PDF—True colour, greyscale
    TIFF, PDF—black and white

    TWAIN scanning

    Scan mode
    True colour, greyscale, black and white

    Scan resolution
    100–1,200 dpi
    Note: 1,200 dpi scanning is supported only for A5 and smaller paper size.

    Fax types
    G3 fax, LAN-Fax—optional
    Fax circuit
    PSTN
    Fax compatibilty
    ITU-T (CCITT), G3—maximum 1 line
    Fax modem speed
    2,400 bps–33.6 Kbps with automatic shift down
    Fax compression methods
    MH, MR, MMR
    Fax resolution
    200 x 100 dpi—8 x 3.85 lines/mm
    200 x 200 dpi—8 x 7.7 lines/mm
    G3 fax transmission speed
    3 seconds approximately—ITU-T No. 1 chart, TTI off, MFT off
    Fax SAF memory capacity
    4 MB
    Quick dials
    400 numbers
    Encryption

    Authentication password

    Authentication
    User authentication—Windows and LDAP via Kerberos, basic, user code
    802.1x wired authentication
    Quota setting/Account limit
    Windows
    PCL 6, PostScript 3
    Windows Server 2008
    Windows Server 2008 R2
    Windows 7
    Windows Server 2012
    Windows 8.1
    Windows Server 2012 R2
    Windows 10
    Windows Server 2016
    Windows Server 2019
    Macintosh
    OS X Native v10.11 or later—PostScript 3 only
    Unix
    Sun Solaris—10
    HP-UX—11.x, 11iv2, 11iv3
    Red Hat Linux—Enterprise v4, v5, v6
    SCO OpenServer—5.0.7, 6.0
    IBM AIX—6.1, 7.1, 7.2
    Standard
    @Remote Embedded
    Web Image Monitor
    Optional

    Card Authentication Package
    Device Manager NX
    Enhanced Locked Print NX and FlexiServer
    GlobalScan NX (from May 2019, firmware upgrade necessary for devices manufactured prior)
    Printer Driver Packager NX
    Smart Operation Panel Designer v1.43 or newer

    Power source
    220–240 V, 50/60 Hz, 8 Amps
    Power consumption
    1,550 W or less—mainframe, maximum power
    500 W or less—printing
    113 W or less—Ready Mode
    55 W or less—Low Power Mode
    1 W or less—Energy Saver Mode (Sleep Mode)
    Typical Electricity Consumption (TEC)
    1,309 Wh
    Warm-up time
    25 seconds—Quick Mode
    65 seconds—Normal Mode
    Power saving mode
    30 minutes shift time—to Low Power Mode
    1 minute shift time—to Energy Saver Mode (Sleep Mode)
    Recovery time

    10 seconds or less—from Low Power Mode
    13 seconds or less—from Energy Saver Mode (Sleep Mode)

    Green labels
    Blue Angel Mark (BAM)
