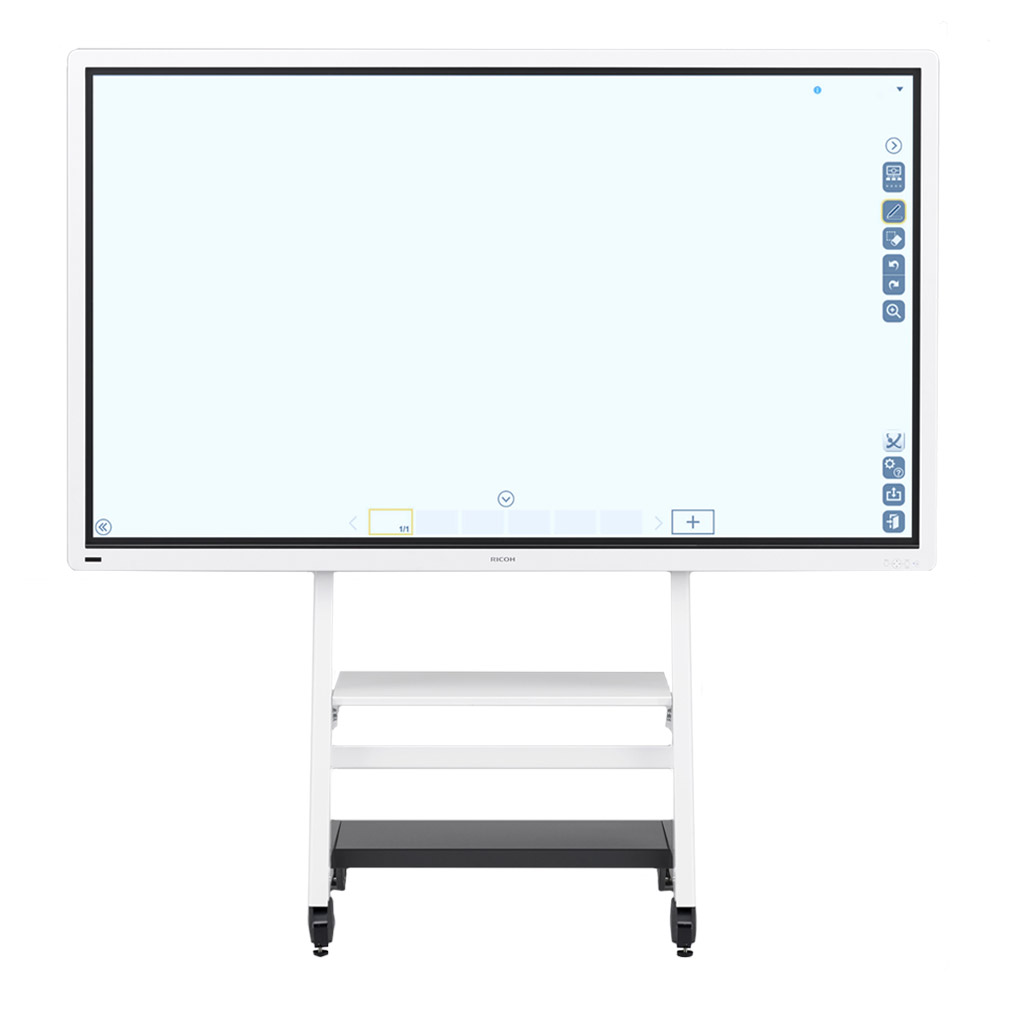

IWB D8600 Interactive Whiteboard

  • A large 86" touchscreen panel
  • Impress with 4K, LED backlit display
  • Connects seemlessly to a laptop, mobile, or a bluetooth device.
  • Second generation touch sensor

Get in touch

Works straightaway out of the box

Begin collaborating without IT support. The D8600 is an out-of-the-box solution that doesn’t need input from a dedicated computer or proprietary software. Pair it with a Ricoh digital projector to share interactive presentations with larger audiences.

Collaborate to elaborate

Use the D8600 to share information from almost any source without connecting to a PC. Download your favourite business apps to display documents, images and more even files from a corporate network or ERP system. Set up an ad hoc meeting in use Skype® for Business for face-to-face feedback or choose other Windows® 10-compatible videoconferencing software to reach your audience.

  • Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  • Innovative handwriting recognition
    Write, scribble or draw with the electronic pen, using the whiteboard’s OCR recognition.
  • No tired eyes
    Blue light mode and anti-glare screen reduces eye strain.
  • Share results easily
    Whiteboard visuals can be printed or send PDFs by email, to USB or directly to your office folders, on the cloud or network.

Get in touch and empower your digital workplace with us

Whatever your business needs, there’s a Ricoh specialist ready to help create an ideal solution to improve your work processes. Get in touch with us and know how we can help improve your businesses so that you may prosper.


Operation panel
1 x main switch—Master power supply
7 x Tact switches—Power, Up, Down, Left, Right, Menu, Enter
Physical dimensions
2,009 x 125 x 1,200 mm
122 kg or less
Panel Type
LCD multi touch-screen display
Panel size
86 inches wide
Aspect ratio
410 cd/m2
3,840 x 2,160 pixels (1,920 x 1,080 pixels with IWB software)

Colour reproduction
1.07 billion colours maximum

Pixel pitch
0.4935 x 0.4935 mm

Response speed
12 ms maximum; 8 ms typical

View angle
Left and right 178 degrees, up and down 178 degrees

Colour temperature
Low blue light—5,000K

Display settings
Landscape orientation, Picture Modes—including Low Blue Light Mode, Backlight, Contrast, Brightness, Saturation, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio source, PiP settings, Aspect, Adjust screen, Touch feature, Language, Power save, Control settings, Touch control settings, Set monitor ID, Advanced information, Reset
Touch sensor
ShadowSense (New Generation Gen2)

Touch points
10 maximum—four points with finger

80 pt/sec—4,000 spatial resolution

Touch pen request
7 mm or more

Touch output
USB 3.0 Type B—not available when controller is installed

Touch panel cover glass
4 mm

Surface treatment
Anti-glare (double)


Video input
1 x VGA
1 x HDMI—HDCP v2.2-compliant
2 x DVI-D—HDCP v2.2-compliant
1 x DisplayPort—HDCP v2.2-compliant

Video output
1 x DisplayPort
Interfaces - standard
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 3.0 Type B—for touch control
USB Hub 1
2 x USB 2.0 Type A—side
2 x USB 2.0 Type A—underneath, for connection box
USB Hub 2
4 x USB 3.0 Type A
1 x USB 3.0—4.5 W, for charging
Controller Type 2
Bluetooth v4.0
Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover
Interfaces - optional
With Ricoh IWB controllers
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
IEEE 802.11a/b/g/n (Wireless LAN)
Touch sensor - Multi-touch
Windows 7—Ultimate, Professional, Home Premium
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1 —Windows 8.1, Pro, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7
Touch sensor - Single-touch
Windows 7—Ultimate, Professional, Home Premium, Home Basic
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1 —Windows 8.1, Pro, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7
Ricoh IWB controller Type 2 (optional)
Windows 7—must be installed after setup at customer site

Mac OS X 10.8–10.13—single-touch sensor
Supported languages
Setup guide and safety instructions
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese
On-screen display
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Chinese
Operating instructions
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Brazilian Portuguese, Chinese
Power source
100–240 V, 50–60 Hz
Power consumption

Standalone configuration
510 W or less—operating
0.5W or less—standby

Controller-based configuration
564 W or less—operating
50 W or less—standby

Off Mode
0.5 W or less
Environmental standards
EU Battery Directive (2006/66/EC)
EU Battery Directive (2005/20/EC)
EU Packaging (94/62/EC)
Taiwan Battery Regulation
Safety standards
EN60950-1 (CE marking, TUV mark)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
Electromagnetic Compatibility (EMC) standards
EN61000-3-2 or EN61000-3-3
GB9254, GB17625.1 (CCC)
EN62311 (CE marking)
AS/NZS CISPR 22 (C-Tick)
CNS13438 (PRC)
Operating environment

0–32º C—operating
-10–50º C—storage
