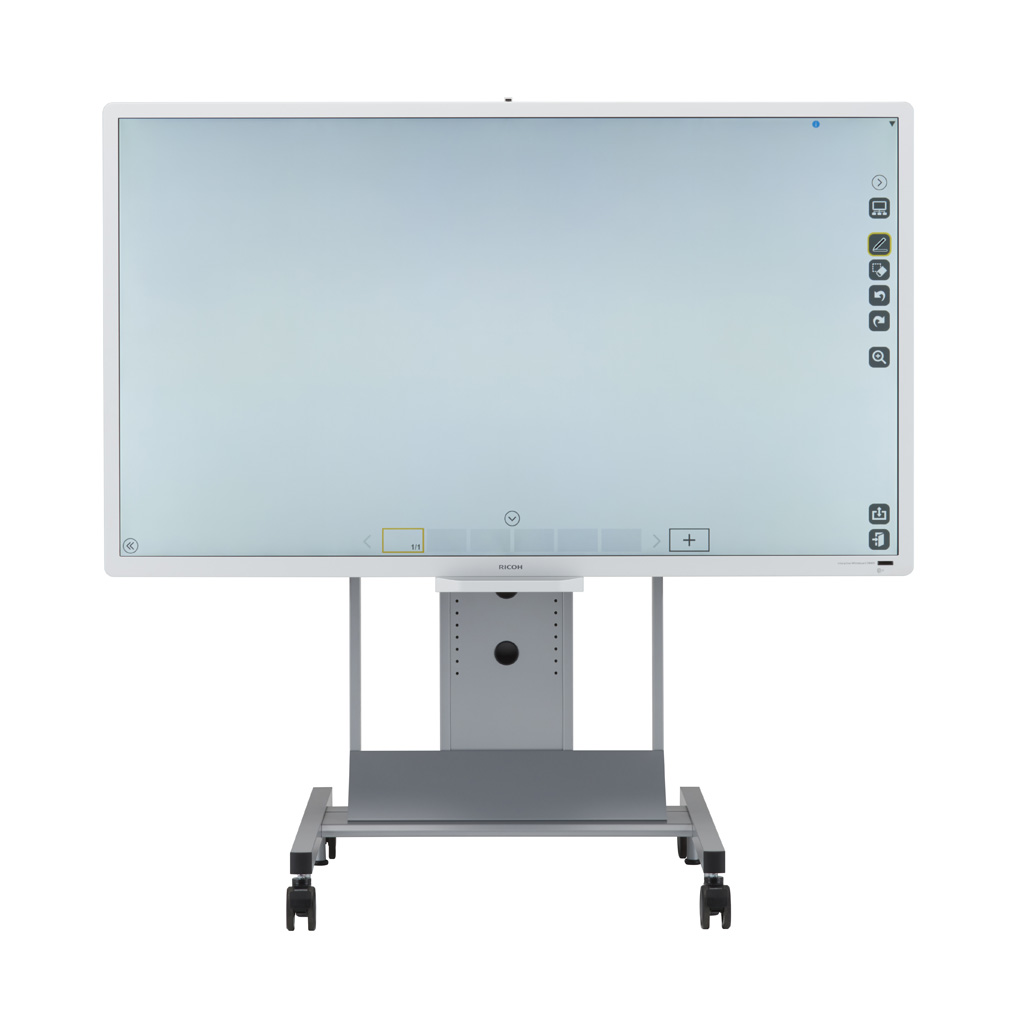

IWB D8400 Interactive Whiteboard
- Large 84 inch screen
- Impress with 4K format, LED backlit display
- Connect via multiple USB ports and Bluetooth
- Instantly transform your computer or mobile screen for team collaboration
Make a big impact at conferences, classrooms exhibitions
Deliver your message on a massive screen that pops with billions of colour in 4K, impressing audiences and colleagues. Showcase videos and presentations while improving how you collaborate and interact.
Bring visuals to life with this massive, yet portable, interactive whiteboard. Get started easily by connecting to your PC or Mac with easy touchscreen control. Provide interactivity by adding text, shapes and highlight information via your finger or felt-tip pen. Use it as a videoconference system, with picture-in-picture to get feedback from participants in different locations with the Ricoh Business Projection System.
- Real time collaboration
Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations. - Innovative handwriting recognition
Write, scribble or draw with the electronic pen, using the whiteboard’s OCR recognition. - No tired eyes
Blue light mode and anti-glare screen reduces eye strain. - Share results easily
Whiteboard visuals can be printed or send PDFs by email, to USB or directly to your office folders, on the cloud or network.
Specifications
- Operation panel
- 1 x main switch—Master power supply
7 x Tact switches—Power, Up, Down, Left, Right, Menu, Enter
- Weight
- 104 kg or less—standalone display
110 kg or less—full configuration
0.9 kg—controller module
0.6 kg—image capture module of controller
- Panel Type
- LCD multi touch-screen display with LED system backlight
- Panel size
- 84 inches wide; 1,860.48 x 1,046.52 mm (horizontal x vertical) screen size
- Contrast
- 1400:1
- Aspect ratio
- 16:9
- Brightness
- 308 cd/m2
- Brightness
- 3,840 x 2,160 pixels (1,920 x 1,080 pixels with IWB software)
- Display
-
Colour reproduction
1.06 billion colours maximum
Pixel pitch
0.744 mm
Response speed
13 ms
Display orientation
Landscape
Screen size
1,860.48 mm—horizontal
1,046.52 mm—vertical
View angle
Left and right 178 degrees, up and down 178 degrees
Aspect ratio
16:9
Colour temperature
Cool—11,000K
Warm—6,500K
Neutral—9,300K
Low blue light—4,200K
On-screen display settings
Picture Modes—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio source, PiP settings, Aspect, Adjust screen, Touch feature, Language, Power save, Control settings, Touch control settings, Set monitor ID, Advanced information - Touch sensor
- Technology
Infrared (IR) touch
Touch points
10—2 when controller is installed
Resolution
32,767 x 32,767 pixels
Accuracy
+/- 10mm of touchable area
Touch pen request
10 mm or more
Touch output
USB 2.0 Type B—not available when controller is installed - Touch panel cover glass
- Thickness
4 mm
Surface treatment
Anti-glare - Video
-
Video input
1 x VGA
1 x HDMI—HDCP-compliant
2 x DVI-D—HDCP-compliant
1 x DisplayPort—HDCP-compliant
- Interfaces - standard
- Control
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 2.0 Type B—for touch control
Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover - Interfaces - optional
- Network interfaces
Available with RICOH Interactive Whiteboard controller Type 1 and RICOH OS-free Interactive Whiteboard controller Type 1
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
IEEE 802.11a/b/g/n (Wireless LAN)
- Windows
- Touch sensor - Multi-touch
Windows 7—Ultimate, Professional, Home Premium
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1 —Windows 8.1, Pro, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7
Touch sensor - Single-touch
Windows 7—Ultimate, Professional, Home Premium, Home Basic
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1 —Windows 8.1, Pro, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7
Ricoh IWB controller Type 1 (optional)
Windows Embedded Standard 8
RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site - Macintosh
-
Mac OS X 10.8, 10.9, 10.10—single-touch sensor - Supported languages
- Setup guide and safety instructions
English, French, German, Spanish
On-screen display
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish
Operating instructions
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese
- Power source
- 100–240 V, 50–60 Hz
- Power consumption
-
Standalone configuration
450 W or less—operating
1W or less—standby
Controller-based configuration
564 W or less—operating
50 W or less—standby
Off Mode
0.5 W or less - Environmental standards
- REACH
EU Battery Directive (2006/66/EC)
EU Battery Directive (2005/20/EC)
EU Packaging (94/62/EC)
Restriction of Hazardous Substances (RoHS)
WEEE - Safety standards
- EN60950-1 (CE marking, TUV mark)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand - Electromagnetic Compatibility (EMC) standards
- EN55022
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
HK EMC—Hong Kong - Wireless LAN standards
- For controller option:
EN300 330-2 (CE Marking)
EN301 489-1, EN301 489-3 (CE Marking)
EN300 328 (CE Marking)
EN301 893 (CE Marking)
EN301 489-1, EN301 489-17 (CE Marking)
ACMA, C-tick—Australia
MED—New Zealand
iDA—Singapore
SIRIM—Malaysia
OFTA—Hong Kong
NTC—Thailand, Philippines
DGPT, WPC—Indonesia - Operating environment
-
Temperature
0–32º C—operating
-20–50º C—storage
Humidity
10–80%—operating
15–80%—storage
