Optional 2-tray paper feed unit that increases the paper capacity of the device.
Capacity: 1,100 (2 x 550) sheets Paper size: B6–SRA3 Envelopes: COM10, Monarch, C6–C5 Custom paper size: 90–320 x 148–457.2 mm Paper weight: 60–300 g/m2 Dimensions (W x D x H): 587 x 685 x 247 mm Weight: 22 kg
Notes:
Cannot be installed with LCT PB3260,Paper Feed Unit PB3250
Paper Feed Unit PB3250
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 550 sheets Paper size: B6–SRA3 Envelopes: COM10, Monarch SEF, C6–C5 Custom paper size: 90–320 x 148–457.2 mm Paper weight: 60–300 g/m2 Power consumption: 19 W or less Dimensions (W x D x H): 587 x 685 x 120 mm Weight: 10.9 kg
Notes:
Cannot be installed with Paper Feed Unit PB3240,LCT PB3260,LCT RT3030,Hybrid Finisher SR3210,Booklet Finisher SR3220,Finisher SR3230,Bridge Unit BU3070,Output Jogger Unit Type M25,Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC

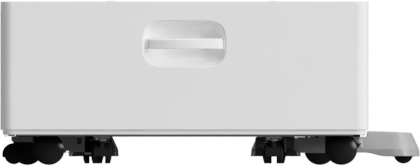

LCT PB3260
Optional tandem Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 2,000 (2 x 1,000) sheets Paper size: A4 Paper weight: 60–300 g/m2 Dimensions (W x D x H): 587 x 685 x 247 mm Weight: 22 kg Power consumption: 15 W or less
Notes:
Cannot be installed with Paper Feed Unit PB3240,Paper Feed Unit PB3250
LCT RT3030
Optional side Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 1,500 sheets Paper size: A4, B5 Paper weight: 52–300 g/m2 Dimensions (W x D x H): 340 x 544.5 x 290 mm Weight: 9.8 kg Power consumption:13 W or less
Notes:
Cannot be installed with Paper Feed Unit PB3250
One of the following must also be selected: Paper Feed Unit PB3240,LCT PB3260
Banner Paper Guide Tray Type M19
Extension arm to hold long sheets (banners) on the bypass tray to prevent them from sliding and falling on the floor.
Dimensions (W x D x H): 370 x 250 x 70 mm—tray folded, 370 x 250 x 250 mm—tray expanded Weight: 942 g

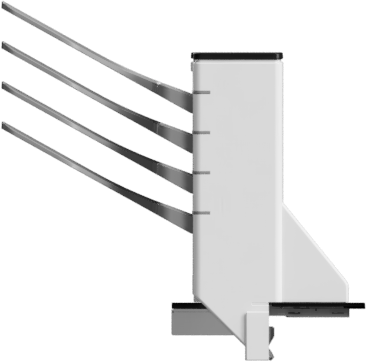

Mailbox CS3010
Provides individual bins for separate users or jobs. Can be configured with a mainframe or finisher.
Number of bins: 4 Capacity: 500 sheets (125 sheets per bin) Paper size: B6–A3 Envelopes: Com10, Monarch, C5–C6 Custom paper size: 90–297 x 148–431.8 mm Paper weight: 52–169 g/m2 Dimensions (W x D x H): 555 x 544 x 506 mm Weight: 13 kg
Internal Multi-Fold Unit FD3000
Offers four types of single-sheet folding, including Z-fold, half-fold, outer tri-fold, and inner tri-fold within the original footprint as it is installed in the exit tray.
Paper size: Multi-folding unit only Z-fold, half-fold—A4–A3, B4 Outer tri-fold, inner tri-fold—A4–A3 When connected to finishers SR3210 and SR3230 Z-fold—A4–A3, B4 Half-fold—A4–A3, B4, 12" x 18", 12.6" x 17.7" (SRA3) Outer tri-fold, inner tri-fold—A4–A3
Paper weight: 52–300 g/m2 Dimensions: 612 x 555 x 184 mm Weight: 15 kg
Notes:
Cannot be installed with Bridge Unit BU3070

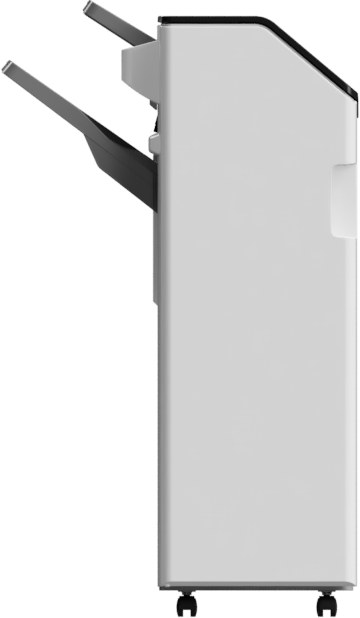

Hybrid Finisher SR3210
Offers both staple-free binding up to 5 sheets (10 pages) and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.
Capacity: 1,000 sheets Paper size: B6–SRA3, custom size 90 x 139.7 – 320 x 600 mm Paper weight: 52–169 g/m2 (proof tray); 52–300 g/m2 (shift tray) Staple capacity: 2–50 sheets (A4 or smaller); 2–30 sheets (B4 or larger) Staple position: Top, bottom, 2 staples Stapleless binding: 2–5 sheets, single or double row, top left Optional punch unit PU3050 available Dimensions (W x D x H): 563 x 620 x 960 mm Weight: 27 kg or less Power consumption: 35.4 W or less
Notes:
Cannot be installed with Finisher SR3230,Booklet Finisher SR3220,Paper Feed Unit PB3250,Output Jogger Unit Type M25,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260

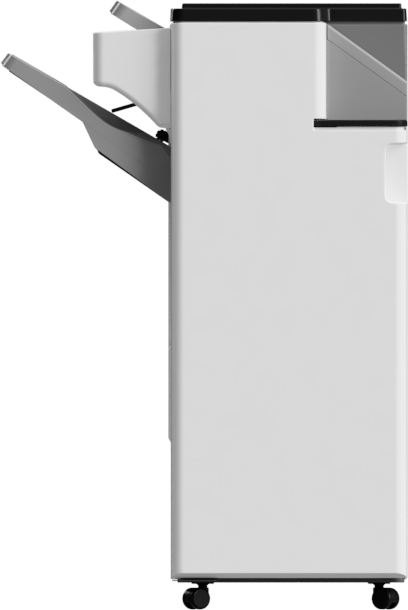

Finisher SR3230
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: B6–SRA3, custom size 90 x 139.7–330.2 x 487.7 mm Paper weight: 52–220 g/m2 (proof tray); 52–300 g/m2 (shift tray) Staple capacity: 50 sheets Staple positions: Top, bottom, 2 staples, top slant Staple paper weight: 52–105 g/m2 Optional punch unit PU3060 available Dimensions (W x D x H): 657 x 613 x 960 mm Weight: 33.5 kg or less; 38 kg or less—with punch unit Power consumption: 67 W or less
Notes:
Cannot be installed with Hybrid Finisher SR3210,Booklet Finisher SR3220,Paper Feed Unit PB3250,Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC
One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260

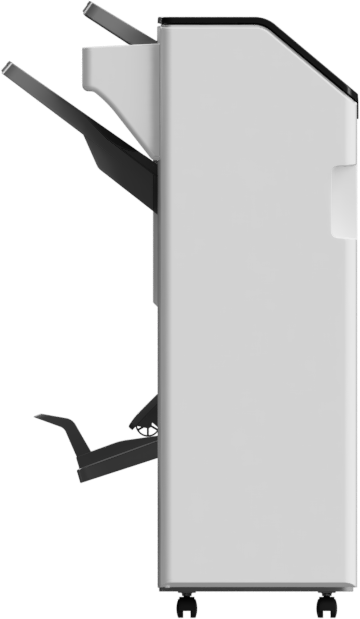

Booklet Finisher SR3220
Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
Capacity: 1,000 sheets Paper size: B6–SRA3, custom size 90 x 139.7–320 x 600 mm Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray Staple capacity: 50 sheets Staple positions: top, bottom, 2 staple, booklet Staple paper weight: 52-105 g/m2 Saddle stitch staple: 15 sheets (60-page booklet) Optional punch unit PU3050 available Dimensions (W x D x H): 563 x 620 x 960 mm Weight: 39.6 kg Power consumption: 35.4 W or less
Notes:
Cannot be installed with Finisher SR3230,Hybrid Finisher SR3210,Paper Feed Unit PB3250,Output Jogger Unit Type M25,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260
Output Jogger Unit Type M25
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Paper size: B5–SRA3 Shift capacity: 20 sheets Paper weight: 52–300 g/m2 Dimensions (W x D x H): 143 x 539 x 218 mm Weight: 2 kg or less Power consumption: 15 W or less
Notes:
By choosing this option the Finisher SR3230 will be added to the configuration.
Cannot be installed with Paper Feed Unit PB3250,Hybrid Finisher SR3210,Booklet Finisher SR3220,Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC
Bridge Unit BU3070
Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.
Notes:
Cannot be installed with Internal Multi-Fold Unit FD3000,Paper Feed Unit PB3250
One of the following must also be selected: Hybrid Finisher SR3210,Finisher SR3230,Booklet Finisher SR3220
Punch Unit PU3050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Finisher SR3230,Output Jogger Unit Type M25
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3050 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Finisher SR3230,Output Jogger Unit Type M25
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3050 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Finisher SR3230,Output Jogger Unit Type M25
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3060 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Hybrid Finisher SR3210,Booklet Finisher SR3220
One of the following must also be selected: Finisher SR3230
Punch Unit PU3060 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Hybrid Finisher SR3210,Booklet Finisher SR3220
One of the following must also be selected: Finisher SR3230
Punch Unit PU3060 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC,Punch Unit PU3060 EU,Punch Unit PU3060 NA,Paper Feed Unit PB3250,Hybrid Finisher SR3210,Booklet Finisher SR3220
One of the following must also be selected: Finisher SR3230
PostScript 3 Unit Type P13
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
Camera Direct Print Card Type M19
Provides software for optional PictBridge functionality that allows users to plug in a PictBridge-enabled digital camera directly to a printer or MFP.
XPS Direct Print Option Type P13
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Image Extension Unit SRA3/12.6" Type P11
Allows users to print crop marks for proofing SRA3/12.6" documents.
Hard Disk Drive Option Type P11
The 320 GB Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
Extended USB Board Type M19
Enables printing from USB Type B port.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,USB Device Server Option Type M19
USB Device Server Option Type M19
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,Extended USB Board Type M19
External NFC Card Reader Bracket Type P11
A table shaped option to place a card reader.
Notes:
Cannot be installed with NFC Card Reader Type P11,IEEE 1284 Interface Board Type M19
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,External NFC Card Reader Bracket Type P11,USB Device Server Option Type M19,Extended USB Board Type M19
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Extended USB Board Type M19,USB Device Server Option Type M19
NFC Card Reader Type P11
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Notes:
Cannot be installed with External NFC Card Reader Bracket Type P11
Attention Light AL3000
Visually alerts operators about system status changes to prompt attention. Can be configured with a mainframe or finisher.
Dimensions (W x D x H) : 100 × 100 × 606 mm
Standard inclusions
10.1" Smart Operation Panel
2 x 550-sheet paper input trays
100-sheet bypass tray
1.75 GHz CPU
2 GB RAM
PostScript3 emulation
Current configuration

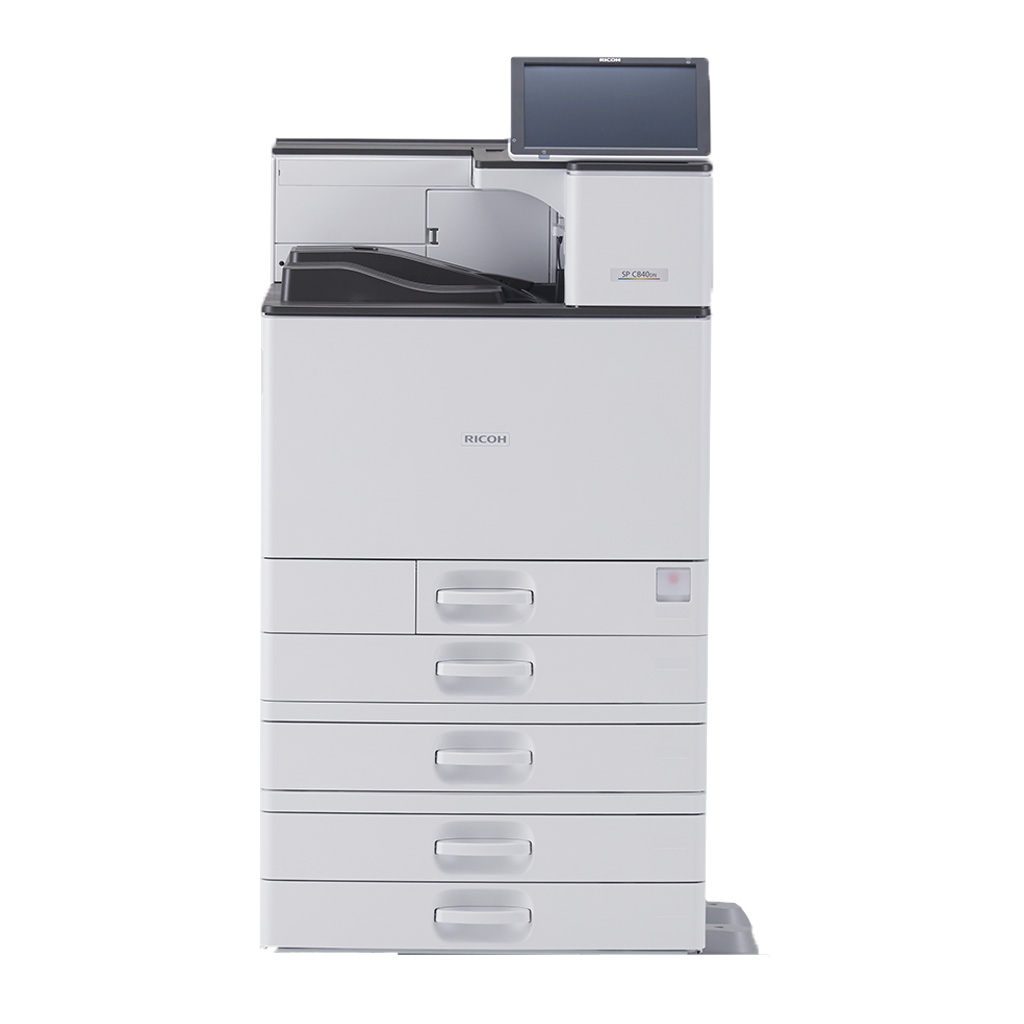

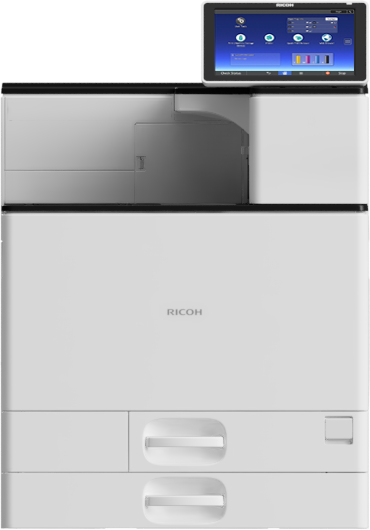

SP C840DN
587 mm x685 mm x864 mm (W x D x H)
85 kg
Selected Options:
